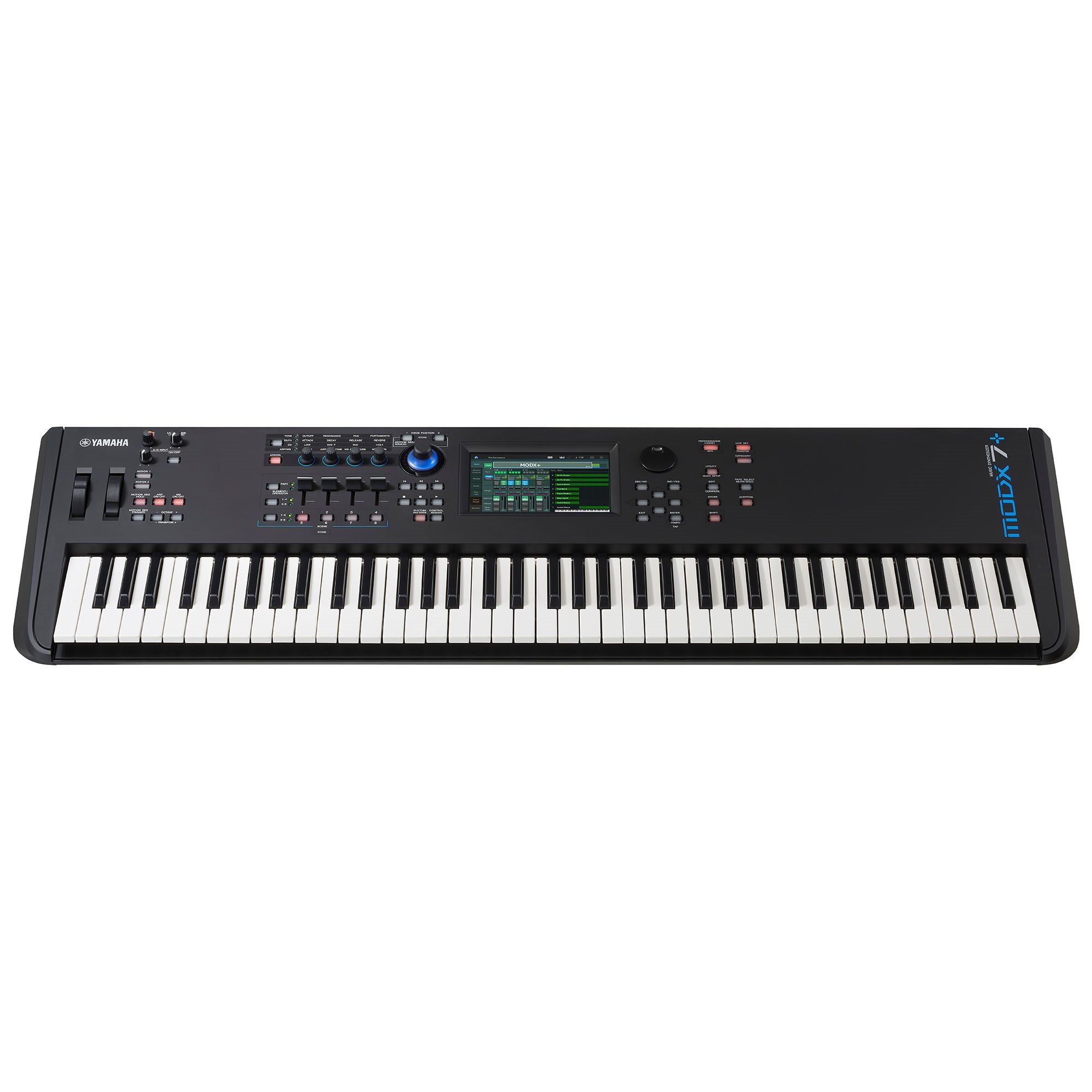

Yamaha MODX7+ 76-Key Synthesizer

The lightweight 76-key MODX7+ uses the same technology powering the flagship MONTAGE synthesizer: an AWM2 (Advanced Wave Memory 2) sample and synthesis engine coupled with a pure FM-X (Frequency Modulation) synthesizer modernised for amazing sound playback and complex sound design. The MODX7+ offers an 76-note, semi-weighted keyboard action, perfect for the piano player needing a piano-focused instrument with a huge variety of sound. Motion Control puts rhythmic and dynamic control at the player's fingertips for a unique, personalised sound, while Seamless Sound Switching (SSS) is perfect for live performances, ensuring there is no cut-off in envelope or effects when changing sounds. The MODX7+ also offers advanced studio connectivity, with a 4-in/10-out, multi-channel USB audio interface and a downloadable license of Steinberg's Cubase AI digital audio workstation software.

76-key semi-weighted keyboard (with initial touch)

sound source

Tone Generator Motion Control Synthesis Engine AWM2: 8 elements FM-X: 8 operators, 88 algorithms

Maximum Polyphony AWM2: 128 voices (both stereo and mono waveforms), FM-X: 64 voices

Multi-timbre built-in sound source 16 parts, audio input part (A/D*1, USB*1)*1 stereo part

Waveform memory preset: Equivalent to 5.67 GB (16-bit linear conversion), User: 1.0 GB

About 2,000 performances

Filter 18 type

Effector Reverb x 12 types, Variation x 85 types, Insertion (A, B) x 85 types *2, Master Effect x 23 types *2 80 types of A/D part insertion <Each effect type has preset programs> Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)

■ Sequencer section

Sequencer capacity approx. 130,000 sounds

Note resolution quarter note/480

Tempo (BPM) 5-300

■ Performance recorder

128 songs

Track 16 sequencer track, tempo track, scene track

Recording method Real-time replace, real-time overdub, real-time punch

Playback MODX original format, SMF format 0,1

■ Arpeggiator

Up to 8 parts can be turned on simultaneously

10,239 preset types

User 256 type

■ Motion sequencer

Up to 8+1 lanes

Number of liveset presets: 256, users: 2,048

Main controls Master volume, A/D input gain knob, USB volume, pitch bend wheel, modulation wheel, control slider x 4, knob x 4, super knob, data dial

Display 7-inch wide VGA TFT color LCD (with touch panel)

Connectors [USB TO DEVICE], [USB TO HOST], MIDI [IN]/[OUT], FOOT CONTROLLER [1]/[2], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], OUTPUT [L/MONO]/ [R] (standard phone jack), [PHONES] (stereo standard phone jack), A/D INPUT [L/MONO]/[R] (standard phone jack)

USB audio interface

Sampling frequency 44.1kHz

Number of input/output channels Input: 4 channels (stereo 2 channels) Output: 10 channels (stereo 5 channels)

Power consumption 16W (when using power adapter PA-150B) NOT included

■ Size/Weight

Width 1,144mm

Height 134mm

Depth 331mm

Weight 7.4kg
